| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LINKWIN |
| Certification: | CE |
| Model Number: | OMT004N |
| Minimum Order Quantity: | 100pcs |
| Price: | USD0.25/PC to USD0.5/PC |
| Packaging Details: | 500pcs in a carton |
| Delivery Time: | 10 working day |
| Payment Terms: | L/C, D/A, D/P, Western Union, |
| Supply Ability: | 10000pcs per month |
| Material: | PET | Chip: | R6P Or Customized |
|---|---|---|---|
| Frequency: | 865MHZ~868MHZ | Read Range: | Up To 10 Meter |
| IP Grade: | IP68 | Size: | 97.5* 27 *1.1mm |

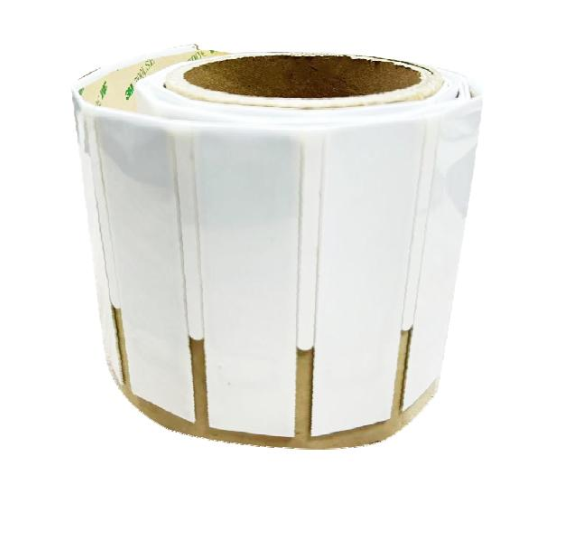

Large SIZE UHF Anti Metal on Metal Tag For Asset Management , RFID Tag , RFID sticker , RFID on metal label
| Protocol | ISO/IEC 18000-6C & EPC global Class 1 Gen 2 |
| Chip | MR6P |
| Memory | EPC 128bits,USER 0bits,TID 48bits |

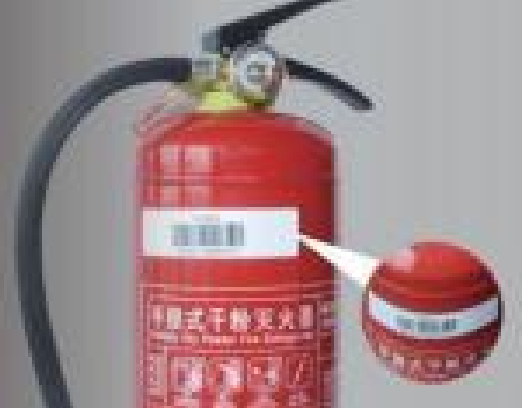

| Application surface | metal surface/off metal surface |
| Mounting way | 3M adhesive |
| Read range | On metal surface: Up to 10 meter by fixed reader; Up to 5 meter by handheld reader Off metal surface: Up to 5 meter by fixed reader; Up to 2.5 meter by handheld reader |
| Frequency | 860MHZ to 869MHZ |
| Size | 97.5* 27 *1.1mm |
| Weight | 1.6 G |
| Material | PET |
| IP Rating | IP68 |
| Storage temp | -40℃ to 60 ℃ |
| Operation temp | -40℃ to 75 ℃ |
| Warranty | 1 Year |
1. CAN I GET FREE SAMPLES?
---Yes.
If samples we have in stock would be provided for testing, but shipment should at your side.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.
