| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LINKWIN |
| Certification: | CE |
| Model Number: | OMT7020 |
| Minimum Order Quantity: | 1000pcs |
| Price: | USD0.25/PC to USD0.5/PC |
| Packaging Details: | 500pcs in a carton |
| Delivery Time: | 10 working day |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10000pcs per month |
| Material: | FR4 | Frequency: | 865~868(EU) ;902~928(US) |
|---|---|---|---|
| Chip: | H3 | Read Range: | Up To 10 Meter |
| IP Grade: | IP68 | Size: | 70*20*3.6 Mm, Hole Size:4mm |
| High Light: | FR4 RFID On Metal Tag,H3 RFID On Metal Tag,UHF On Metal Tag 512bits |
||

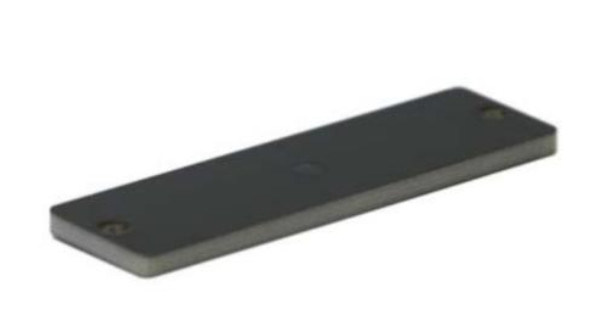

UHF PCB on metal tag OMT7020 , Small size on metal tag , High IP grade IP68 tag , waterproof tag
On-Metal Tag OMT7020 is mainly used for asset management and can be directly attached or fixed with screws on the metal surface. Its steady shock resistant,waterproof, dustproof performance makes it suitable for metal shelf warehousing management and other asset management.
| Specifications | |
| Protocol | ISO/IEC 18000-6C & EPC global Class 1 Gen 2 |
| Chip | H3 |
| Memory | EPC 96bits,USER 512bits,TID 96bits |
| Application surface | Metal surface |
| Mounting way | Screw or 3M adhesive |
| Read range | On metal surface: Up to 10 meter by fixed reader; Up to 6 meter by handheld reader |
| Frequency | 860MHZ to 869MHZ/902MHZ to 928MHZ |
| Size | 70*20*3.6 mm, hole size:4mm |
| Weight | 11 G |
| Material | FR4 |
| IP Rating | IP68 |
| Storage temp | -40℃ to 100 ℃ |
| Operation temp | -40℃ to 100 ℃ |
| Warranty | 1 Year |
1. CAN I GET FREE SAMPLES?
---Yes.
If samples we have in stock would be provided for testing, but shipment should at your side.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.
