| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LINKWIN |
| Certification: | CE |
| Model Number: | OMT4932 |
| Minimum Order Quantity: | 100pcs |
| Price: | USD0.25/PC to USD0.5/PC |
| Packaging Details: | 500pcs in a carton |
| Delivery Time: | 10 working day |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10000pcs per month |
| Material: | PA6+GF | Chip: | Alien H9 |
|---|---|---|---|
| Frequency: | 865~868(EU) ;902~928(US) | Size: | 48.5*31.5*10MM, Hole Size:4mm |
| Read Range: | Up To 10 Meter | IP Grade: | IP68 |

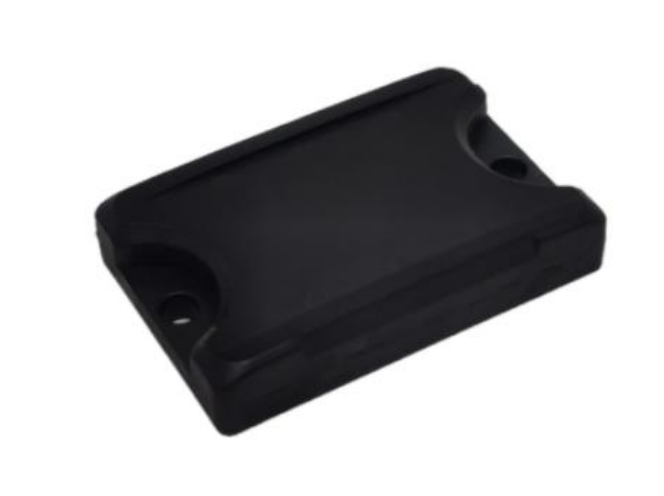

Industrial grade high temperature outdoor on metal tag OMT4932 , RFID hard tag , RFID on metal tag , RFID label
| Protocol | ISO/IEC 18000-6C & EPC global Class 1 Gen 2 |
| Chip | R6P |
| Memory | EPC 128bits,USER 0bits,TID 96bits |
| Application surface | Metal surface |
| Mounting way | Screw or 3M adhesive |
| Read range | Up to 10 meter by fixed reader; Up to 6 meter by handheld reader |
| Frequency | EU:865-868MHZ,US:902MHZ~928MHZ |
| Size | 48.5*31.5*10MM, hole size:4mm |
| Weight | 10 G |
| Material | PA6+GF |
| Color | Black |
| IP Rating | IP68 |
| Storage temp | -40℃ to 70 ℃ |
| Operation temp | -55℃ to 300 ℃ ,it can stand 300 ℃ for 30 minutes , and stand 260℃ for 120minutes |
| Warranty | 1 Year |
1. CAN I GET FREE SAMPLES?
---Yes.
If samples we have in stock would be provided for testing, but shipment should at your side.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.
