| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LINKWIN |
| Certification: | CE |
| Model Number: | OMT9525 |
| Minimum Order Quantity: | 100pcs |
| Price: | USD0.25/PC to USD0.5/PC |
| Packaging Details: | 500pcs in a carton |
| Delivery Time: | 10 working day |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10000pcs per month |
| Material: | PPS | Chip: | Alien H3/H9 |
|---|---|---|---|
| Frequency: | 865~868(EU) ;902~928(US) | Size: | 95*25*3.5 Mm, Hole Size:3.3mm |
| Read Range: | Up To 10 Meter | IP Grade: | IP68 |

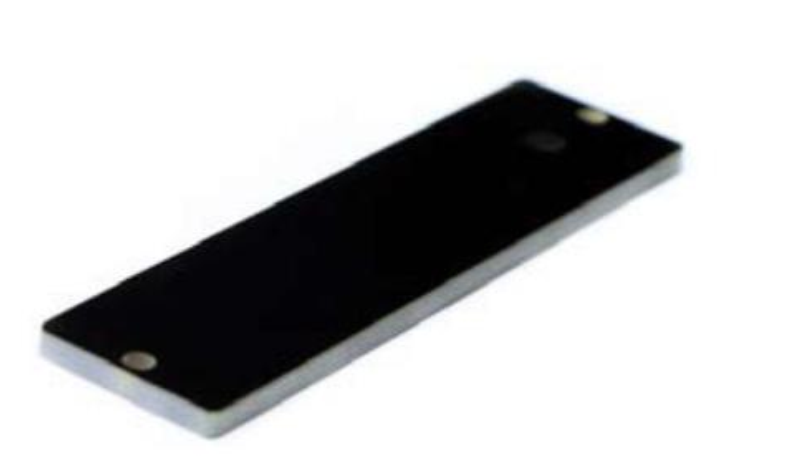

PCB UHF RFID On Metal Tag Industrial For Tracking , RFID tag for asphalt management , RFID PCB on metal tag , RFID hard tag
|
Protocol |
ISO/ IEC 18000-6C & EPC global Class 1 Gen 2 |
|
Chip |
Ucode 8/ H3 |
|
Memory |
Ucode 8:EPC 128bits, USER 0bits,TID 96bits
H3:EPC 96bits, USER 512bits,TID 96bits |
|
Application surface |
Metal surface |
|
Mounting way |
Screw or 3M adhesive |
|
Read range |
On metal surface: Up to 10 meter by fixed reader; Up to 6 meter by handheld reader |
|
Frequency |
860MHZ to 869MHZ/902MHZ to 928MHZ |
|
Size |
95*25*3.5 mm, hole size:3.3mm |
|
Weight |
18 G |
|
Material |
FR4 |
|
IP Rating |
IP68 |
|
Storage temp |
-40℃ to 100 ℃ |
|
Operation temp |
-40℃ to 100 ℃ |
|
Warranty |
1 Year |
1. CAN I GET FREE SAMPLES?
---Yes.
If samples we have in stock would be provided for testing, but shipment should at your side.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.
