Place of Origin: | CHINA |
---|---|
Brand Name: | LINKWIN |
Certification: | CE |
Model Number: | OMT042 |
Minimum Order Quantity: | 100pcs |
Price: | USD0.25/PC to USD0.5/PC |
Packaging Details: | 500pcs in a carton |
Delivery Time: | 10 working day |
Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 10000pcs per month |
Material: | PC | Chip: | H9 |
---|---|---|---|
Frequency: | 865~868(EU) ;902~928(US) | Size: | 130*42*10.5 Mm |
Read Range: | Up To 30 Meter | IP Grade: | IP68 |

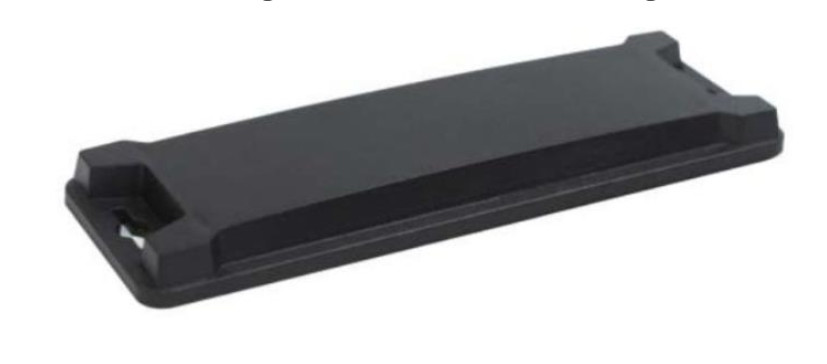

Long read range on metal tag OMT042 , UHF RFID on metal tag with 30 meter read range
Specifications | |
Protocol | ISO/IEC 18000-6C & EPC global Class 1 Gen 2 |
Chip | H9 |
Memory | EPC 96bits,USER 512bits,TID 96bits |
Application surface | metal surface |
Mounting way | Screw or 3M adhesive |
Read range | US frequency :Up to 30 meter by fixed reader; Up to 18 meter by handheld reader EU frequency :Up to 18 meter by fixed reader; Up to 8 meter by handheld reader |
Frequency | 860MHZ to 869MHZ/902MHZ to 928MHZ |
Size | 130*42*10.5 mm |
Weight | 40 G |
Material | PC |
IP Rating | IP68 |
Storage temp | -40℃ to 80 ℃ |
Operation temp | -40℃ to 60 ℃ |
Warranty | 1 Year |
1. CAN I GET FREE SAMPLES?
---Yes.
If samples we have in stock would be provided for testing, but shipment should at your side.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.
