| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LINKWIN |
| Certification: | CE |
| Model Number: | OMT10324 |
| Minimum Order Quantity: | 100pcs |
| Price: | USD0.25/PC to USD0.5/PC |
| Packaging Details: | 500pcs in a carton |
| Delivery Time: | 10 working day |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10000pcs per month |
| Material: | PPS | Chip: | H9 |
|---|---|---|---|
| Frequency: | 865~868(EU) ;902~928(US) | Size: | 103*24mm |
| Read Range: | Up To 10 Meter | IP Grade: | IP68 |

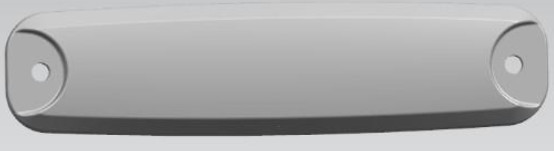

Industrial Outdoor RFID On Metal Tag Grey Color ABS Material , RFID long read range on metel tag
| Specifications Protocol ISO/IEC 18000-6C & EPC global Class 1 Gen 2 | |
| Chip | R6 |
| Memory | R6:EPC 96bits,USER 0bits,TID 96bits ,Access PWD none, Kill PWD none |
| Application surface | metal surface,plastic surface |
| Mounting way | isntall by screw or the back adhesive |
| Read range | On metal:Up to 10 meter by fixed reader; Up to 5 meter by handheld reader Non metal:Up to 6 meter by fixed reader; Up to 3 meter by handheld reader |
| Frequency | 902-928MHZ 866-868MHZ |
| Size | 103*25*6.8MM,hole size:5MM |
| Weight | 8G |
| Material | Engineering plastics |
| Color | Light Grey or customized |
| IP Rating | IP67 |
| Storage temp | -20℃ to 70℃ |
| Operation temp | -40℃ to 85℃ |
| Warranty | 1 Year |
1. CAN I GET FREE SAMPLES?
---Yes.
If samples we have in stock would be provided for testing, but shipment should at your side.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.
