Easily Installing Passive RFID On Metal Tag 60x27mm TID 48bits

Basic Information
Place of Origin: CHINA
Brand Name: LINKWIN
Certification: CE
Model Number: OMT008
Minimum Order Quantity: 1000pcs
Price: USD0.25/PC to USD0.5/PC
Packaging Details: 1000pcs/roll ; 8 roll in a carton
Delivery Time: 10 working day
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1 Million per month
Detail Information
Material: PET Color: White
Size: 60x27x1mm Frequency: 865~868(EU) ;902~928(US)
Read Range: 8 Meter Service: Encoding And Printing
High Light:

passive RFID On Metal Tag


RFID On Metal Tag TID 48bits


Passive RFID metal label

Product Description

UHF RFID printable and flexible on metal label OMT008 , Easy to install passive rfid tags , RFID metal label




Maximum flexibility with strong adhesive for easy application on flat or curved surfaces.

Excellent performance with on/off metal consistency.

Durable material, IP 68 rated waterproof.

With thermal transfer printer compatibility, customized pre-printing artwork available.

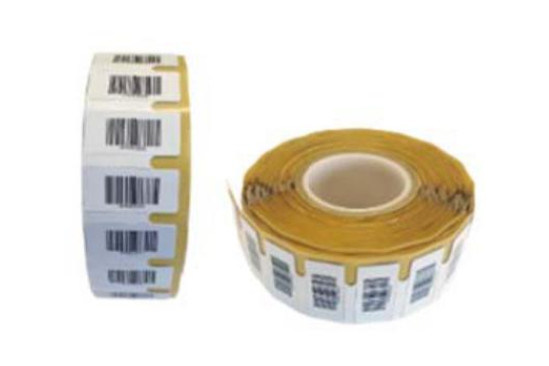

Printed in batch on-demand and delivered in roll format.

Use Case

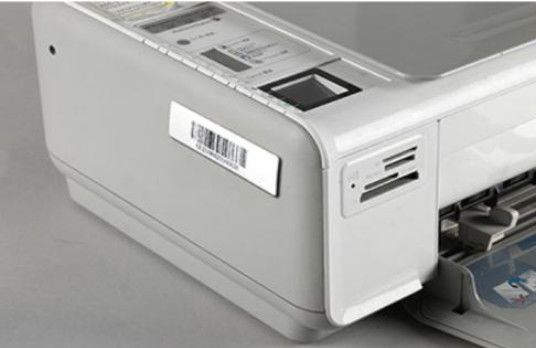

Can be generated on demand and are applicable on flat and curved metal surfaces i.e.

tools, IT assets, appliances, machinery and other indoor assets

Protocol ISO/IEC 18000-6C & EPC global Class 1 Gen 2
Chip R6P
Memory EPC 128bits,USER 0bits,TID 48bits
Application surface Metal surface/Non metal surface
Mounting way 3M adhesive
Read range Metal surface:Up to 8 meter by fixed reader; Up to 4 meter by handheld reader
Non metal surface:Up to 4 meter by fixed reader; Up to 2 meter by handheld reader
Frequency 865868( EU) /902928( US)
Size 60x27x1mm
Weight 1 G
Material PET or according to custom`s request
Color White
IP Rating IP68
Storage temp -40to 70
Operation temp -40to 100
Warranty 1 Year
