| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LINKWIN |
| Certification: | CE |
| Model Number: | HAT037S |
| Minimum Order Quantity: | 10000pcs |
| Price: | USD0.12/PC to USD0.2/PC |
| Packaging Details: | 1000pcs in a carton |
| Delivery Time: | 10 working day |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1 Million per month |
| Material: | ABS | Color: | Green Or Customized |
|---|---|---|---|
| Laser Printing: | Available | Pre-encoding: | Available |
| Application: | Cylinders, Tanks, Kegs And Tools | Chip: | R6P |
| Feature: | Reusable And Removable |
RFID UHF Lanyard tag , RFID reusable Cable tag , RFID zip tag HAT037S widely used in cylinders, tanks, kegs and tools , RFID hard tag

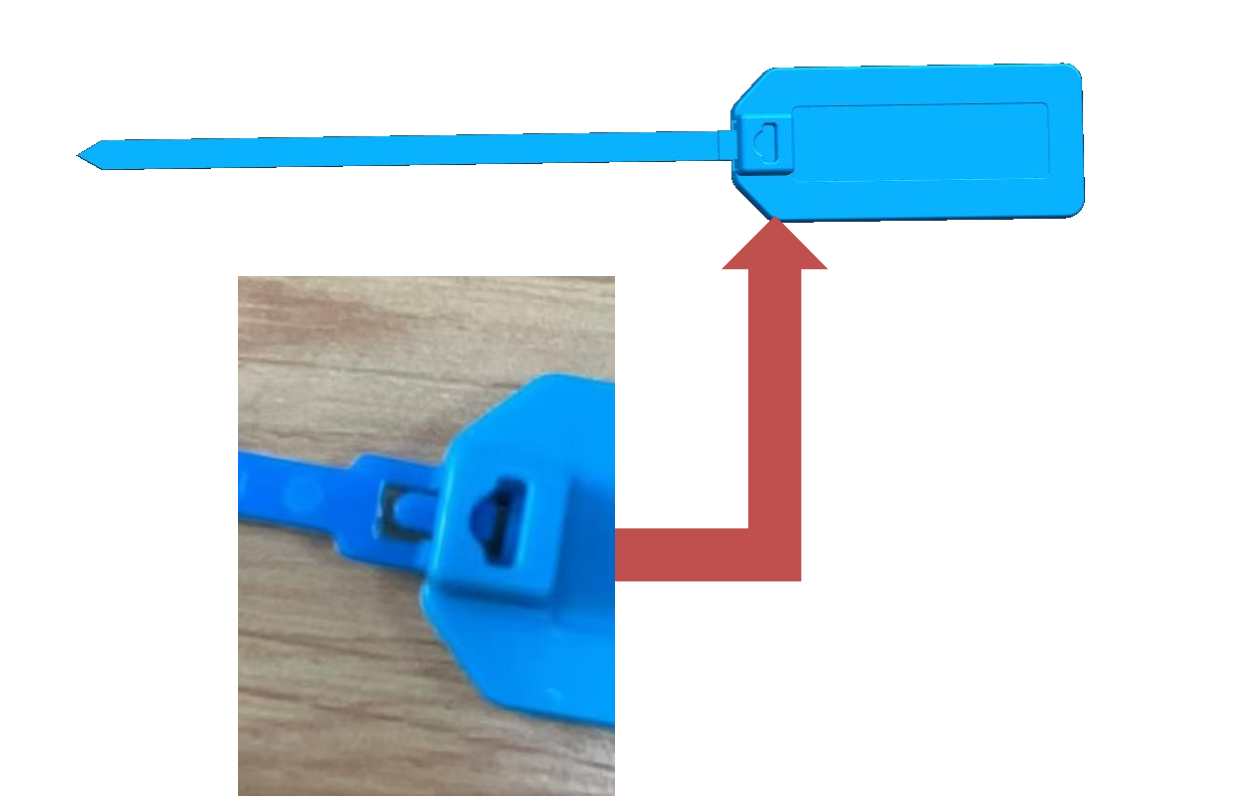

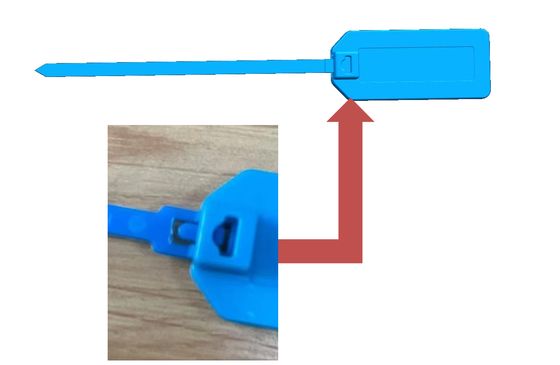

The reusable cable tag is with special lock structure,it can lock/unlock by moving a special part, Having a unique ID and can store additional information. It can be re-used to track logistics information and animals and production process. The tag is dismountable and resuable
KEY Features:
1,Easy, permanent attachment method
2,IP67 water resistant rated
3,Read range up to 8 meters
4,Resuable and removable
Application:
Packaged Gas Cylinders
Keg & Beverage Tanks
Industrial/Commercial Tools
Medical Assets
Cabling
| Protocol | ISO/IEC 18000-6C & EPC global Class 1 Gen 2 |
| Chip | MR6P |
| Memory | EPC 128bits,USER 0bits,TID 48bits ; Access PWD:32 bits;Kill PWD:32 bits |
| Application surface | Asset,wood,cable |
| Read range | Up to 8 meter by fixed reader; Up to 4 meter by handheld reader |
| Frequency | 860MHZ to 960MHZ |

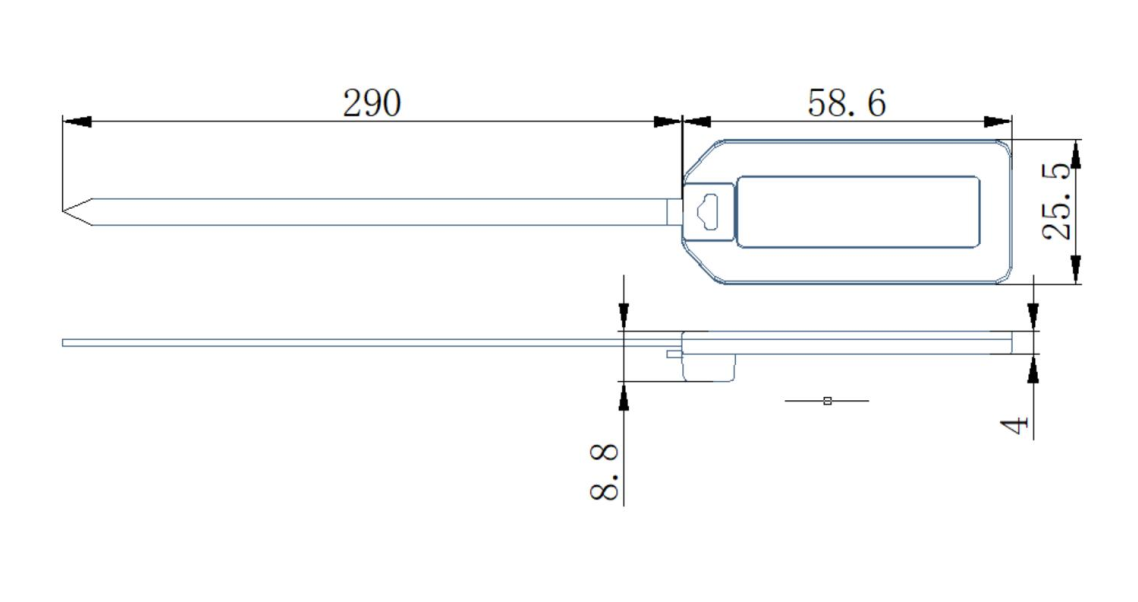

| Size | Tag head:58.6* 25.5 *4 mm;cable length:290mm;Lock thickness:8.8mm |
| Weight | 7 G |
| Material | PA66 |
| Chemical Properties | alcohol resistance； oil resistant； corrosion resistance； Flame-retardant properties: H0； vibration resistance: 50Hz； abrasion resistance |
| IP Rating | IP67; |
| Storage temp | -40℃ to 60 ℃ |
| Operation temp | -40℃ to 60 ℃ |
| Warranty | 1 Year |
