MINI SIZE laundry tag Achieve Seamless Laundry Management with RFID Laundry Tag - 10 Years Data Retention

Basic Information
Place of Origin: CHINA
Brand Name: Linkwin
Model Number: LAU005
Detail Information
Reading Range: 2-5cm/5 Meter Size: 55mm X 11mm Or Customized
Data Retention: 10 Years Name: RFID Laundry Tag
Memory: 128bits Application: Laundry Management
Protocol: IEC 18000-6C & EPC Global Class 1 Gen 2 Material: Fabric

Product Description

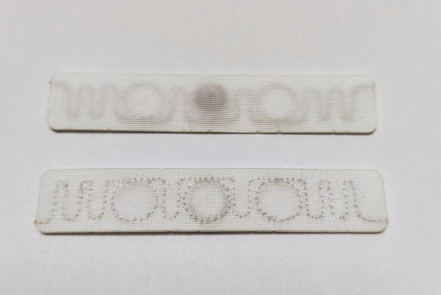

MINI SIZE laundry tag Achieve Seamless Laundry Management with RFID Laundry Tag - 10 Years Data Retention



Features:

  • Product Name: RFID Laundry Tag
  • Protocol: ISO14443A/ISO/IEC 18000-6C & EPC Global Class 1 Gen 2
  • Humidity: 5%-95%
  • Application: Laundry Management
  • Storage Temperature: -25℃ To +70℃
  • Reading Range: 2-5cm/5 Meter
  • UHF laundry tag: UHF technology enables laundry tags to be read from 2-5cm/5 Meter
  • Laundry tag: RFID laundry tags are used for laundry management
  • Laundry management: RFID laundry tags can improve the efficiency of laundry management

Specifications
Protocol ISO/IEC 18000-6C & EPC global Class 1 Gen 2
Chip Ucode 8
Memory UHF:EPC 128bits,USER 512bits,TID 96bits
Application surface Towel/Bedsheet/Bathrobe/Clothing
Washing cycles 200 wash
Data retention 50 years
Mounting way Sew or Insert into seam
Read range Up to 5 meter by fixed reader; Up to 2.5 meter by handheld reader
Frequency 860MHZ to 960MHZ
Size 55 x 11x1.7mm
Weight 1 G
Material Fabric
Color White
IP Rating IP68
Storage temp -40to 80
Operation temp Washing :90° C 15 min; Drying :160°C 30 min; Ironing :200°C 10 sec ; Tunnel finisher:185° C
30 min; Extractor press :60 Bars (60N/cm²)
Warranty 1 Year
