| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LINKWIN |
| Certification: | CE |
| Model Number: | HAT030 |
| Minimum Order Quantity: | 10000pcs |
| Price: | USD0.12/PC to USD0.2/PC |
| Packaging Details: | 1000pcs in a carton |
| Delivery Time: | 10 working day |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1 Million per month |
| Material: | PPS | Color: | Green Or Customized |
|---|---|---|---|
| Laser Printing: | Available | Pre-encoding: | Available |
| Application: | Cylinders, Tanks, Kegs And Tools | Chip: | H9,NFC213 Or Customized |

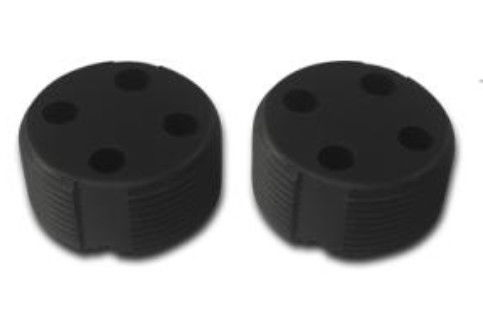

860-960mhz 125Khz 13.56Mhz 30x15mm TK4100/EM4305 H9 LF HF UHF RFID trash waste bin tags
RFID waste bin tag Benefits: RFID Waste Bin Tag supports identification and traceability of waste streams. Tags attached to waste containers enable operators to monitor sorting quality, track the number of times a container is placed for collection and track the weight of its contents. Bin and container manufacturers can choose from a broad spectrum of LF, HF and UHF passive contactless transponders. Robust features provide various levels of resistance to water, chemicals, shock, and temperature variation. For field-deployed assets, Bin Tag install easily into standard nests, including metal bins and DIN 30745 plastic bins.
Features:
* Available in LF, HF or UHF
* On-demand encoding and packaging service
* Easily integrated
* Tamper resistant
* Broad compatibility
* Reliable, consistent performance
| Specifications | |
| Protocol | ISO/IEC 18000-6C & EPC global Class 1 Gen 2 |
| Chip | Higgs 9 |
| Memory | works very well under harsh or chemical outdoor environments due to its solid exterior |
| Application surface | waste bin |
| Mounting way | isntall by tag`s thread |
| Read range | Up to 3 meter by fixed reader; Up to 1.5 meter by handheld reader |
| Frequency | 902-928MHZ 866-868MHZ |
| Size | Diameter 30MM,hole size:5MM,thickness 15mm |
| Weight | 9G |
| Material | PPS |
| Color | Black or customized |
| IP Rating | IP68 |
| Storage temp | -25℃ to 75℃ |
| Operation temp | -50℃ to 200 ℃ |
| Warranty | 1 Year |
