| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LINKWIN |
| Certification: | CE |
| Model Number: | S1 |
| Minimum Order Quantity: | 10pcs |
| Price: | USD1/PC to USD15/PC |
| Packaging Details: | 50pcs in a carton |
| Delivery Time: | 10 working day |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 50000pcs per month |
| Style: | Bluetooth Beacon | Chipset: | Ble 5.0 Chip |
|---|---|---|---|
| Size: | 104.4×46x21.3mm | Color: | White |
| Material: | ABS | Application: | Indoor Location, Iot Solution |
| High Light: | ABS android bluetooth ibeacon,150m Ibeacon Transmitter tag,android Bluetooth 5.0 beacon |
||

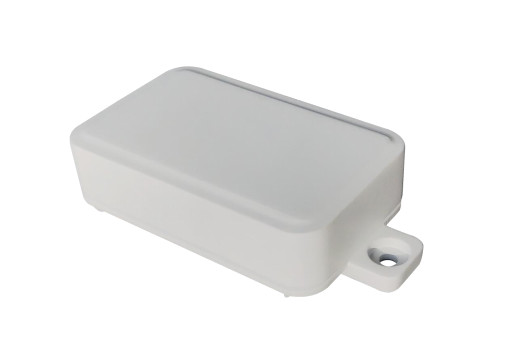

Bluetooth 5.0 beacon waterproof ibeacon battery life 8 years , 150m long rang ibeacon BLE tag
This Ibeacon support Iphone standard Ibeacon format broadcast with battery indicator ,Super waterproof and dustproof,We delveop related APP to set it,it is easy to install and manage
Feature:
1,Support Apple iBeacon format broadcast
2,Support Eddystone protocol and two kinds of protocol round broadcast
3,Support power display and temperature display
4,High energy ER14505 for 8 years` lifetime
5,High IP grade IP67
6,Special configuration APP provided
7,Installing by screw or back adhesive
Application:
1,Indoor positioning of large shopping malls, parking lots, airports and other large public places
2,Tourist attractions, museum online explanation
3,Sign in at work place, exhibition and other occasions
4,2.4GHz Low power Bluetooth system
5,Offline promotion, precise advertising push
6,Personnel positioning in office, factory and other scenarios
| Specifications Frequency of communication BLE 5.0 |
|
| Rated operational voltage | 3.6V |
| Average current | 30uA (0dBm/500ms) |
| Quiescent current | ≤2uA |
| Peak current | 5mA |
| Read range | 0~150m |
| Security Support Password Change Parameters;Restart and unreachable mode;Anti-malicious connection function |
|
| Broadcast frequency | 100ms~10s, default 500ms |
| Broadcasting power | -20~+4 dBm, default 0dBm |
| Size | Diameter 104.4×46x21.3mm |
| Weight | 73G(inclduing battery) |
| Material | ABS |
| Lifetime | Above 8 years(0dBm/500ms) |
| Battery type | 2pcs ER14505 |
| Battery capacity | 5400mAH |
| Mounting way | Srew or adhesive |
| Operation temp | -30°C~+60°C |
| Support device | iOS 7.0 and above, Android 4.3 and above |
| UUID | FDA50693-A4E2-4FB1-AFCF-C6EB07647825/or customized |
| Major | 1616/customized |
| Minor | Random/customized |
| Measured power | -65dBm |
| Transmission power | 0dBm |
| Change Password | Support password confirmation change |
| Broadcasting Interval | 500ms |
| SofteReboot | Support |
| Battery service | Battery icon display;real-time detection;Full grid is 100% power |
