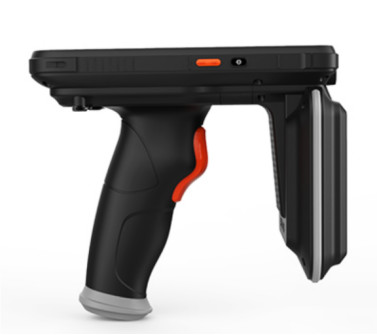

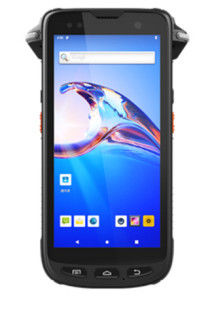

Multi Management Portable ISO18000 6C RFID Hardware Terminal 2D Barcode

Basic Information
Place of Origin: CHINA
Brand Name: LINKWIN
Certification: CE
Model Number: LW6100
Minimum Order Quantity: 1pcs
Price: USD550/PC to USD800/PC
Packaging Details: 20pcs in a carton
Delivery Time: 10 working day
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000pcs per month
Detail Information
Operating System: Android 10.0 Dimension: 166mm(H)x79mm(W)x31mm(D)±2 Mm
Display: Gorilla Glass 3 9H 5.5 In. TFT-LCD (720x1440)touch Screen With Backlight Backlight: LED Backlight
Battery: Rechargeable Li-ion Polymer, 3.8V, 9000mAh
High Light:

ISO18000 6C RFID Hardware Terminal


RFID Hardware Terminal 2D Barcode


UHF Handheld Reader

Product Description

Portable uhf rfid terminal ISO18000 6C Multi-tag Management Uhf Rfid handheld reader 2D Barcode uhf rfid terminal



Industrial and Humanized Hardware Design

Industrial&humanized keypad design and tough 5.5 inch Gorilla Glass 3 touch screen together with high resolution of 720*1440 display shall match high standards in logistics, express and retail;

Octa-Core Processor&Large Memory

Android 10.0 OS with memory of 2GB RAM/16GB ROM or 4GB RAM/64GB ROM shall provide the highly standard experience;

Superior Data Communication and Security Guarantee

Double insurance of 4G &WIFI network and highly secured Android 10.0 system shall provide the high speed data communication and perfect security guarantee;

Rugged Ergonomic and Over-molding Design


Over-molding and ergonomic hardware design can satisfy most of the tough environment from different fields;

Extremely Long Distance UHF ReaderHighly Customized Structure

Extremely long distance of uhf reader up to 20 meters shall satify most of the projects with definitely stable performance;

Perfect Service

Professional and skillful service involving the whole life cycle can guarantee the stability.



Dimension 166mm(H)x79mm(W)x31mm(D)±2 mm
Weight Net Weight :600g (including battery&wrist strap)
Display Gorilla Glass 3 9H 5.5 in. TFT-LCD (720x1440)touch screen with backlight
Backlight LED backlight
Expansions 1 PSAM, 1 SIM, 1 TF
Battery Rechargeable li-ion polymer, 3.8V, 9000mAh
CPU Cortex A73 2.0GHz octa-core
Operating System Android 10.0
Storage 2GB RAM/16GB ROM or 4GB RAM/64GB ROM, MicroSD(max 256GB expansion)
Operating Temp. -20℃ to 50℃
Storage Temp. -20℃ to 70℃
Humidity 5%RH to 95%RH(non-condensing)
Drop Specifications 5ft./1.5 m drop to concrete across the operating temperature range
Sealing IP65, IEC compliance
ESD ±15kv air discharge, ±8kv direct discharge
SDK Handheld-Wireless Software Development Kit
Language Java
Environment Android Studio or Eclipse

TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20;


GSM/GPRS/Edge (850/900/1800/1900MHz);

WLAN 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
WPAN Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2
GPS GPS(embedded A-GPS), accuracy of 5 m
2D barcode 2D CMOS Imager Zebra SE4710/Mindeo ME5600
Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, Max, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.
Resolution Rear 13 megapixel, front 5.0 megapixel
Lens Auto-focus with LED flash
RFID NFC Frequency 13.56MHz
Protocol ISO 14443A&15693
R/W Range 2cm to 5cm
RFID UHF Frequency 865~868MHz or 920~925MHz
Protocol EPC C1 GEN2/ISO 18000-6C
Antenna Gain Circular antenna(4dBi)
R/W Range 20 m(tags and environment dependent)
Protocol ISO 7816
Baudrate 9600, 19200, 38400,43000, 56000, 57600, 115200
Slot 2 slots(maximum)
Standard 1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable
Optional Cradle




Multi Management Portable ISO18000 6C RFID Hardware Terminal 2D Barcode 0
